Project: Magic Island Bridge
Location: Chongqing, China
Client: Kingrun Real Estate

This bridge, over the Yangtze river, connects the “Peach Blossom Island” with the mainland. The 420-m bridge was designed with a themed overlay, and each elements, from the large gates, to the relatively smaller railings are designed so as to form a cohesive theme for the entire bridge. We generated the concept of the bridge, and took the design all the way to Schematic Drawings.

Bridge elevation

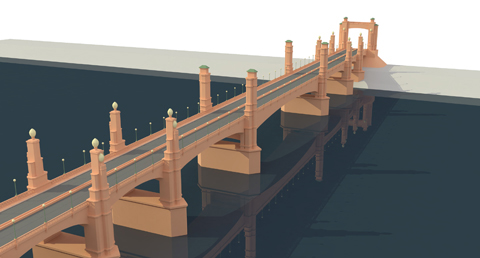

Bridge Bird’s eye view

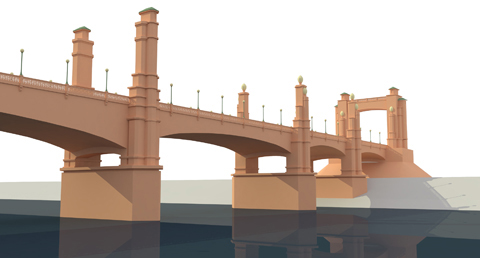

Bridge view from water

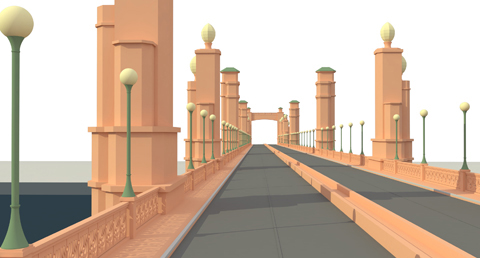

Driving along the bridge

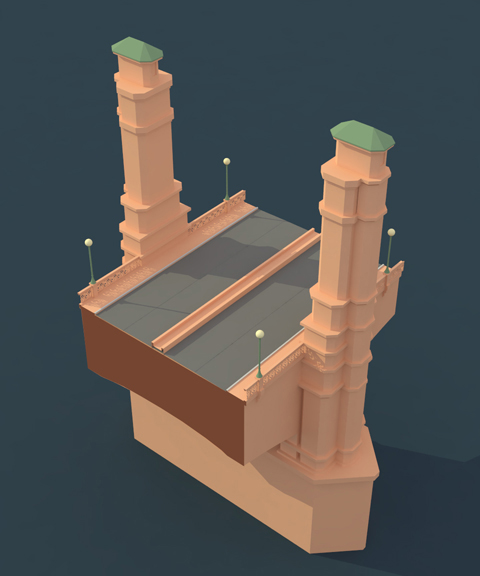

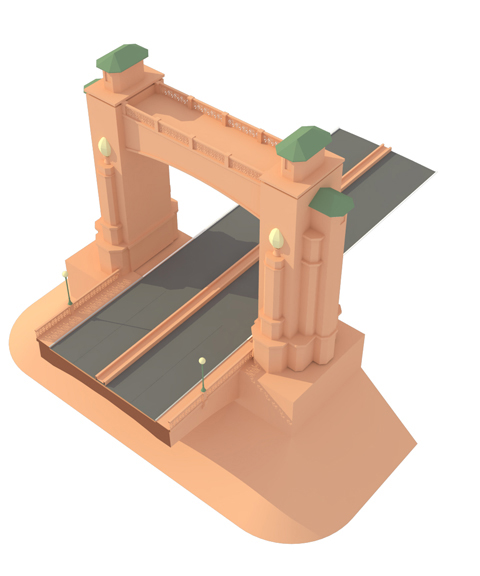

Entry gate detail

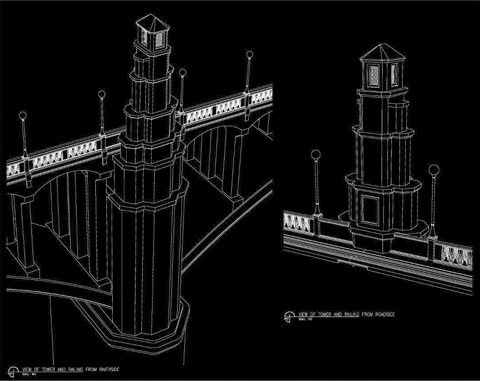

Pilaster detail

Gate ornamentation studies

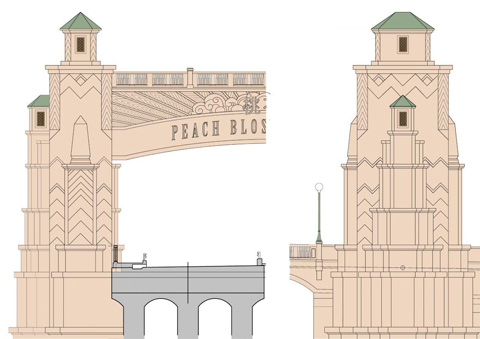

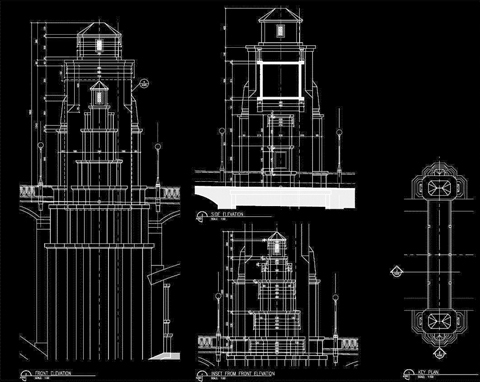

Drawings of gate elevation

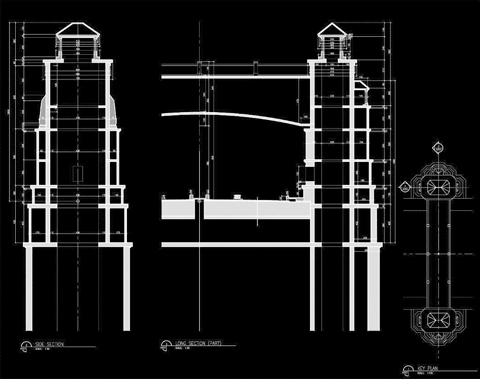

Gate section

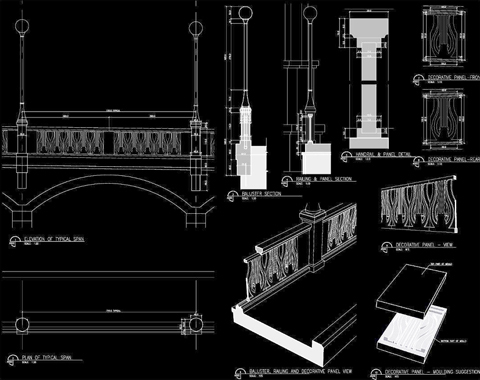

Baluster detail

Pilaster detail
